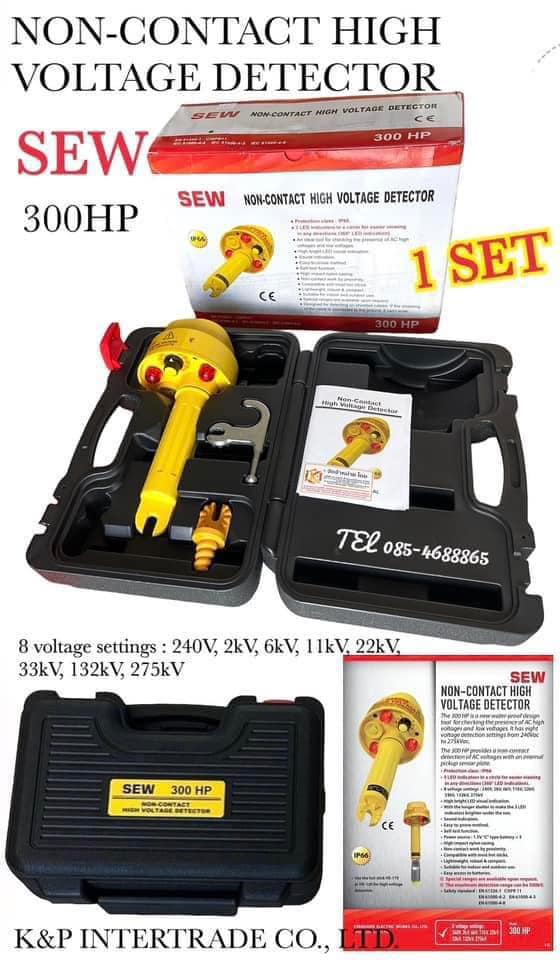

300HP SEW Voltage Detector 240Vac ถึง 275kVac แสดงผลด้วย 3 หลอด LED เสียง ระดับป้องกัน IP66

เครื่องวัดแรงดันไฟฟ้าแรงสูง SEW 300HP

300HP : โวลท์เตจดีเทกเตอร์, 240Vac ถึง 275kVac, แสดงผลด้วย 3 หลอด LED, เสียง,

ระดับป้องกัน IP66

The 300 HP is a new water-proof design tool for checking the presence of AC high voltages and low voltages. It has eight voltage detection

settings from 240Vac to 275kVac.

The 300 HP provides a non-contact detection of AC voltages with an internal pickup sensor plate.

▪ Protection class : IP66

▪ 3 LED indicators in a circle for easier viewing in any directions (360° LED indication).

▪ 8 voltage settings : 240V, 2kV, 6kV, 11kV, 22kV,33kV, 132kV, 275kV

▪ High bright LED visual indication.

▪ With the longer shelter to make the 3 LED indicators brighter under the sun.

▪ Sound indication.

▪ Easy-to-prove method.

▪ Self-test function.

▪ Power source : 1.5V "C" type battery × 3

▪ High impact nylon casing.

▪ Non-contact work by proximity.

▪ Compatible with most hot sticks.

▪ Lightweight, robust & compact.

▪ Suitable for indoor and outdoor use.

▪ Easy access to batteries.

※ Special ranges are available upon request.

※ The maximum detection range can be 500kV.

▪ Use the hot stick HS-175 or HS-120 for high voltage detection.

▪ Safety standard : EN 61326-1 CISPR 11

: EN 61000-4-2 EN 61000-4-3

: EN 61000-4-8

INSTRUMENT LAYOUT

① LED indicators

② Rotary selector with the settings listed below :

▪ OFF – Turn the pick-up sensor off

▪ Test – Check if the entire circuitry is working

▪ 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV

③ Buzzer

④ Battery holder

⑤ Adapter end

APPLICATIONS

▪ Non-contact detection of live voltages.

▪ Find faults in cables.

▪ Check and detect live high voltage cables.

▪ Trace live wires.

▪ Check high frequency radiation.

▪ Check grounding equipment.

▪ Detect residual or induced voltag
